How to pair my ComPilot II to my phone

visual

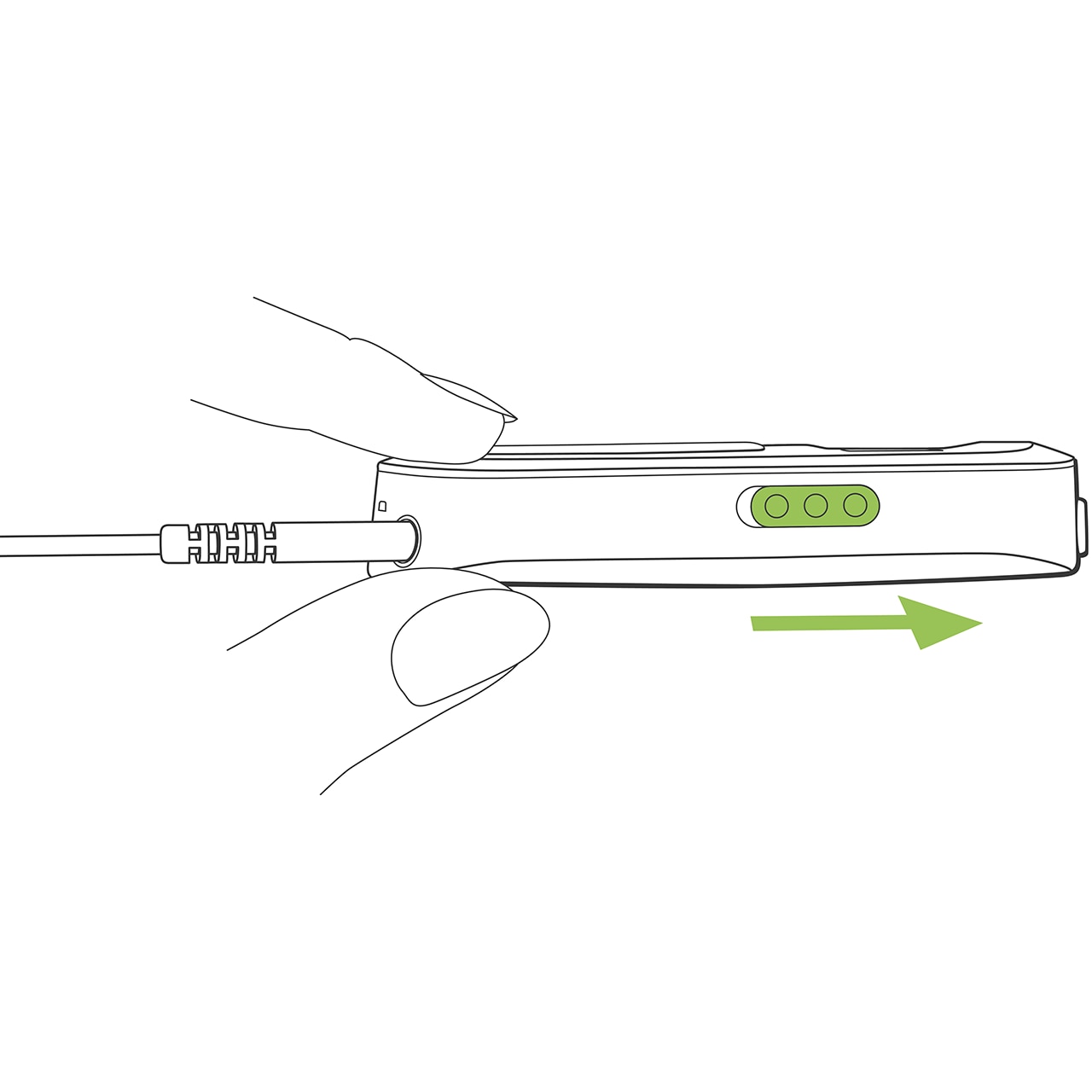

To begin pairing, remove the ComPilot II from the patient’s neck and switch ComPilot II on.

visual

Place the ComPilot II and cell phone next to each other.

visual

Find the connectivity settings of the phone menu program and switch on the Bluetooth settings.

visual

Press and hold the connect and volume up buttons simultaneously (2 sec) until the audio indicator starts to rapidly blink blue.

visual

Select “Phonak ComPilot II” from the list of found Bluetooth devices.

visual

If asked, enter 0000 and accept the request to access the phone book.

visual

Pairing is successful when the audio indicator light stops blinking blue and the phone shows the ComPilot II is connected.

visual

A quick pairing instruction is also shown on the back of ComPilot II.

How to pair my ComPilot II to my tablet or iPad

visual

Switch ComPilot II On.

visual

Press and hold the connect and volume up buttons simultaneously (2 sec) until the audio indicator starts to rapidly blink blue.

visual

Find the connectivity settings of the tablet or iPad menu program and switch on the Bluetooth settings.

visual

Select “Phonak ComPilot II” from the list of found Bluetooth devices.

visual

Pairing is successful when the audio indicator light stops blinking blue and the tablet or iPad shows that ComPilot II is connected.

visual

A quick pairing instruction is also shown on the back of ComPilot II.

How to set up ComPilot II to work with my computer without Bluetooth

visual

Switch ComPilot II On.

visual

Press and hold the connect and volume up buttons simultaneously (2 sec) until the audio indicator starts to rapidly blink blue.

visual

Then insert the Sennheiser BTD USB Adapater into a free USB port on your running computer.

The pairing occurs automatically.

visual

Pairing is successful when the audio indicator light stops blinking blue and the USB adapter shows a constant blue light.

visual

A quick pairing instruction is also shown on the back of ComPilot II.
